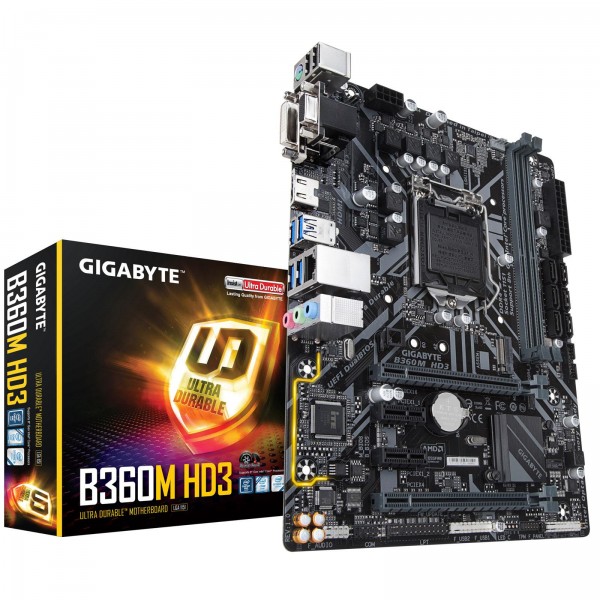

Carte Mère GIGABYTE B360M HD3 MATX LGA1151-H4 Garantie 3ans
Carte Mère GIGABYTE B360M HD3 MATX LGA1151-H4 Garantie 3ans
INFORMATIONS SUR LE PRODUIT (Ces spécifications sont fournies à titre indicatif)
| PROCESSEUR - Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package - L3 cache varies with CPU CHIPSET - Intel® B360 Express Chipset MEMOIRE - 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory - Dual channel memory architecture - Support for DDR4 2666/2400/2133 MHz memory modules CARTE GRAPHIQUE - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz AUDIO - Realtek® ALC887 codec - High Definition Audio - 2/4/5.1/7.1-channel RESEAU - Realtek® GbE LAN chip (10/100/1000 Mbit) PORT D'EXPANSION - 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. - 1 x PCI Express x16 slot, running at x4 (PCIEX4) - 2 x PCI Express x1 slots STOCKAGE - 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) - 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. USB - 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CONNECTEUR INTERNE - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x CPU fan header - 1 x system fan header - 1 x M.2 Socket 3 connector - 6 x SATA 6Gb/s connectors - 1 x front panel header - 1 x front panel audio header - 1 x USB 3.1 Gen 1 header - 2 x USB 2.0/1.1 headers - 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) - 1 x parallel port header - 1 x serial port header - 1 x Clear CMOS jumper PANNEAU ARRIERE - 1 x PS/2 keyboard/mouse port - 1 x D-Sub port - 1 x DVI-D port - 1 x HDMI port - 4 x USB 3.1 Gen 1 ports - 2 x USB 2.0/1.1 ports - 1 x RJ-45 port - 3 x audio jacks BIOS - 2 x 128 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 SYSTEME D'EXPLOITATION - Support for Windows 10 64-bit DIMENSION - Micro ATX Form Factor; 24.4cm x 18.5cm SPÉCIFICITÉ PARTICULIÈRE - Recommended configuration for VR Gaming PC - Exclusive Realtek 8118 Gaming LAN |
